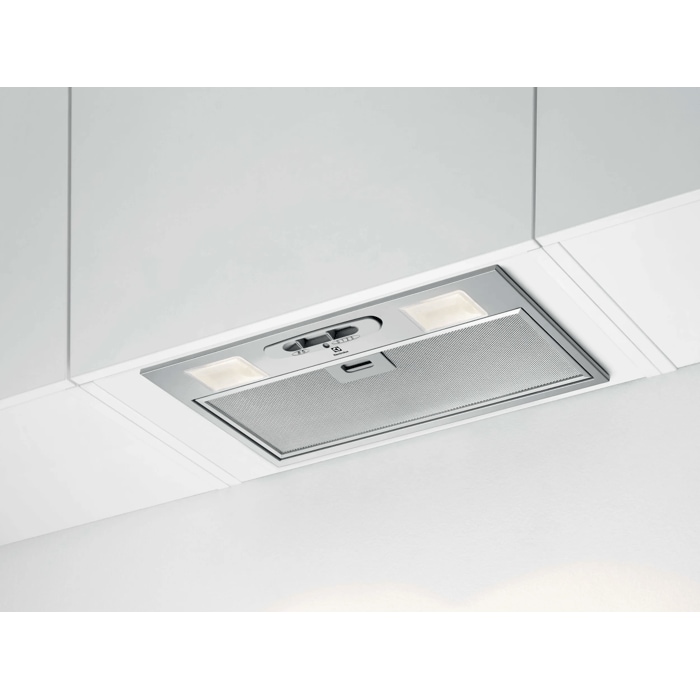

LFG235S

Integrated hood

Name: LFG235S
Brand: Electrolux
SKU: LFG235S

Product details

Product information sheet

InstallationGroup Hood

Size (cm)52

Capacity, Max (m³/h)330.0

Noise Level, Max/Min (dB)63 / 45

Washable filter

Safety Warnings

Essential precautions to ensure safe usage and installation.

Specification

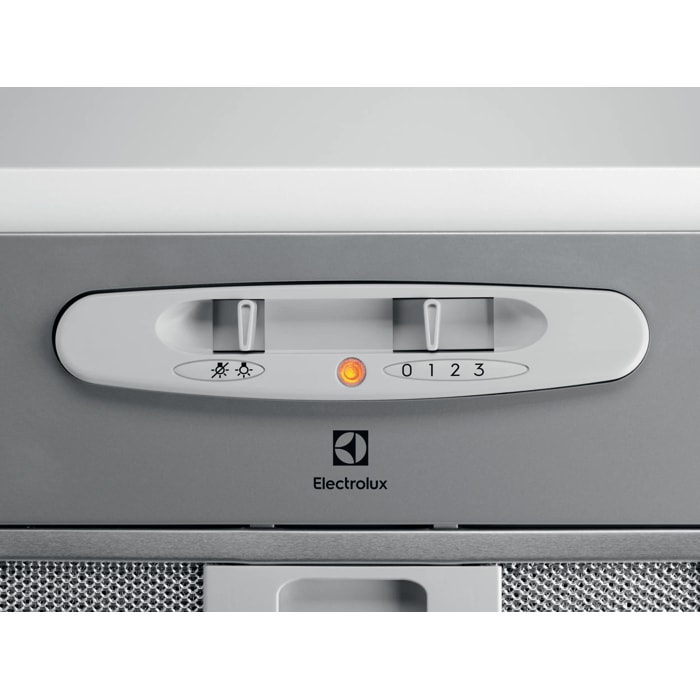

Operation via sliding switch
Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odors.

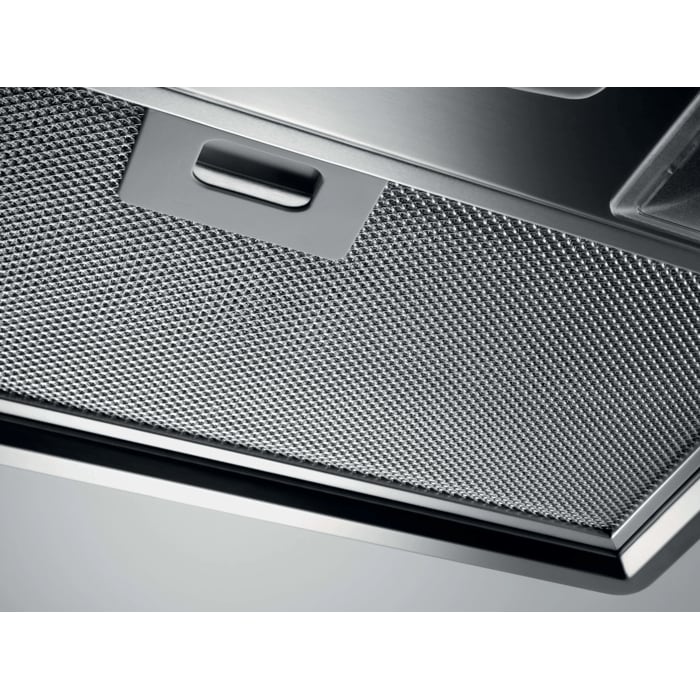

Aluminium grease filters: The metal filter captures grease, reducing odours, purifying the air, and enhancing performance. It's dishwasher-safe and never needs replacing.
Recirculation or extraction options
Charcoal filter: This charcoal filter is used in recirculation mode to remove cooking smells. Needs replacing periodically.
Noise level: dB(A)
Installation Type: For installation into an island chimney or corner unit

Performance

Number of Speed Settings: 3
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 145/330/-
Ducted Noise Level - Min/Max/Intensive (dB): 45/63/-
Light temperature, K: 3000
Number of Lights: 2
Hob2Hood Connection: No
Min Recirculated Extraction Rate (m³/h): 140
Max Recirculated Extraction Rate (m³/h): 220
Intensive Recirculated Extraction Rate (m³/h): 0
Min Recirculated Noise Level (dB): 56
Max Recirculated Noise Level (dB): 70
Number of Grease Filters: 1
Grease Filter Type: Aluminium mesh

Installation

Minimum Distance from Electric Hob (cm): 42
Minimum Distance from Gas Hob (cm): 65
Size (cm): 52
Extraction Type - Recirculation: Yes
Extraction Type - Ducted (External): Yes
Net Weight: 4.2
Gross Weight (Kg): 5
Dimensions (mm) (HxWxD): 145x520x284
Installation: Group
Cord Length (m): 1.8
Air Outlet (mm): 150
Voltage (V): 220-240
Required Fuse (A): No

Energy

Energy Rating: C
Grease Filter Efficiency Rating: D
Annual Energy Consumption (kWh): 51.9
Fluid Dynamic Efficiency Rating: D
Lighting Efficiency Rating: E

Other

Product number (PNC): 942 022 690
Main Colour: Grey
Control Type: Mechanical slider
Lamp Type: LED bulb
Bar Code: 7332543832040
Charcoal Filter: Included
Charcoal Filter Type: ECFB03ST
Long Life Filter Type: No
Super Performing Filter Type: NO
Information for professionals about non-destructive disassembly according to Regulation EU 66/2014

Product details

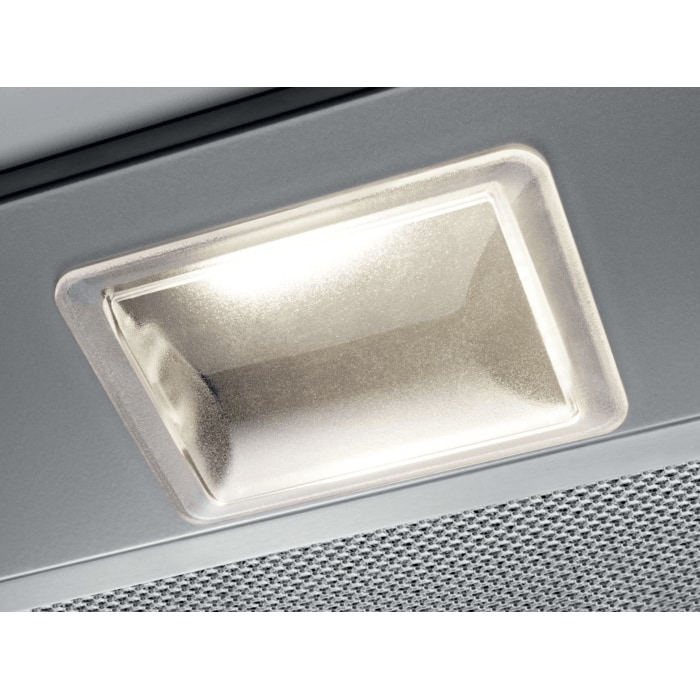

Our 300 LEDlights Hood requires far less energy than other lights and has a much longer life expectancy. Efficient and helpful, these lights ensure exceptional visibility for all your demands while cooking.

Long life and great lighting – let LEDlights lead the way

Enjoy expert illumination while you cook. Our LEDlights use far less energy than other lights and provide excellent visibility in the kitchen, ensuring you cook with greater confidence and agility.

Reliably reduces cooking fumes

Create a cleaner atmosphere for you to cook, eat and relax in with this efficient cooker hood. Its reliable motor effectively reduces cooking fumes so you can enjoy your time in the kitchen more than ever.

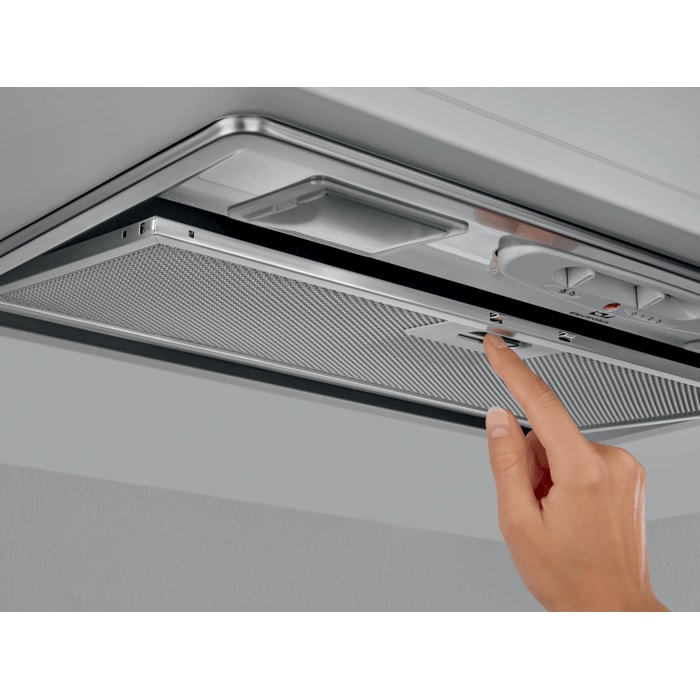

Standard grease filter for a clean kitchen

Our reliable grease filter means you can always enjoy a clear cooking space. When a new filter is required, it can be easily washed or replaced. Your kitchen will be cleaner for longer.

Hood settings, made simple

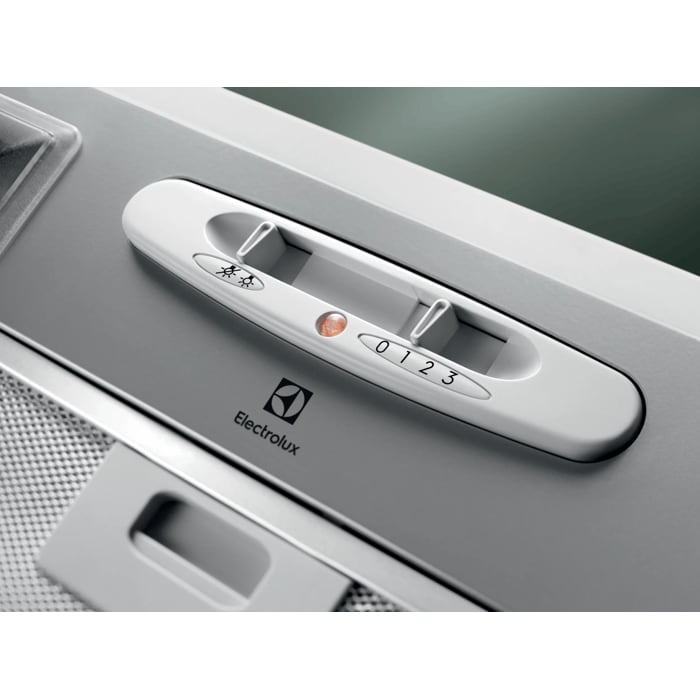

Your cooker hood functions can be easily reached with our mechanical controls. Adjust the light settings or the fan speed for fast, flexible cooking.

Fast and easy Best-In-Class Installation

PerfectFit solutions provides user-friendly replacement of your current cooker hood. And 25% fewer mounting steps with tool-free options, for fast, accurate, and Best-In-Class Installation of your new cooker hood.
