LFP326S

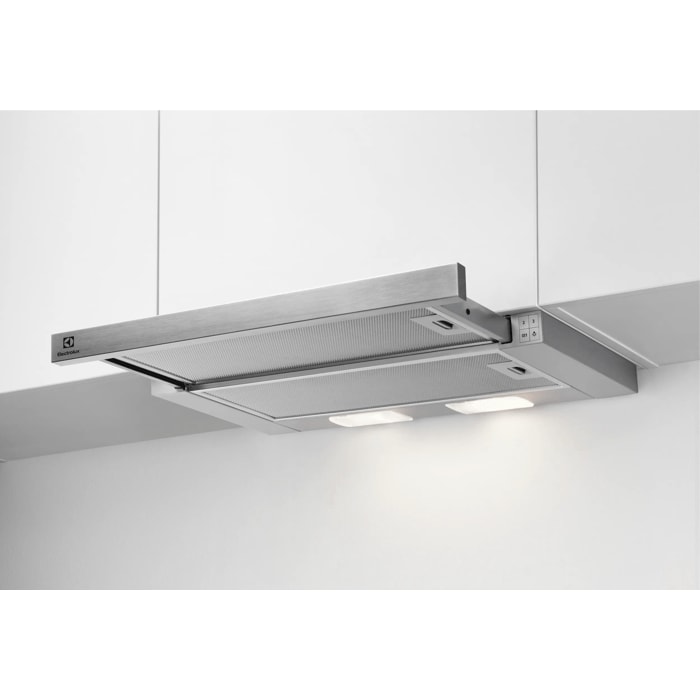

Integrated hood

Name: LFP326S
Brand: Electrolux
SKU: LFP326S

Product details

Product information sheet

InstallationPull-out Hood

Size (cm)60

Capacity, Max (m³/h)410.0

Noise Level, Max/Min (dB)69 / 48

Washable filter

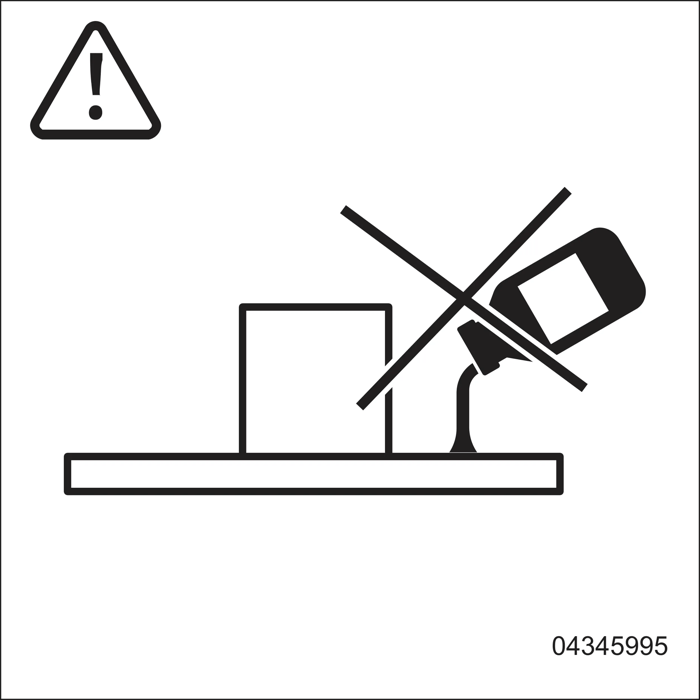

Safety Warnings

Essential precautions to ensure safe usage and installation.

Specification

Operation via push buttons
Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odors.

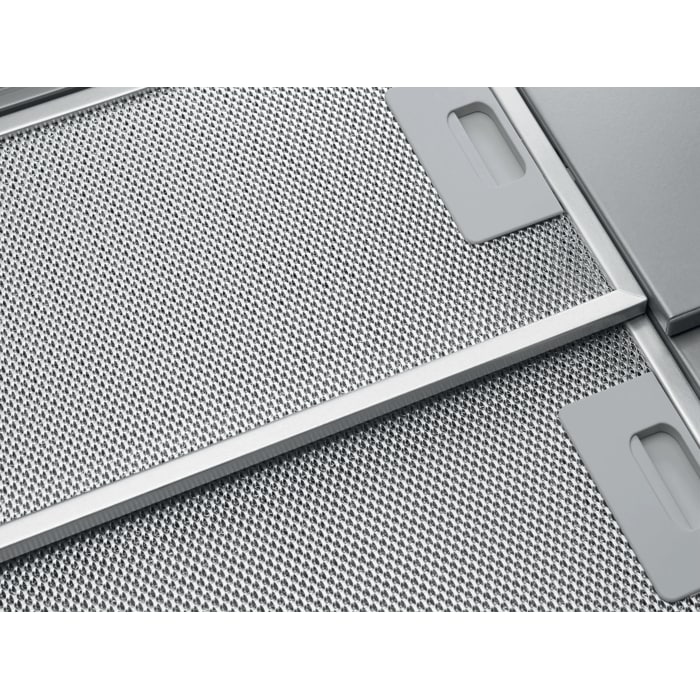

Aluminium grease filters: The metal filter captures grease, reducing odours, purifying the air, and enhancing performance. It's dishwasher-safe and never needs replacing.
Recirculation or extraction options
Charcoal filter: This charcoal filter is used in recirculation mode to remove cooking smells. Needs replacing periodically.
Noise level: dB(A)

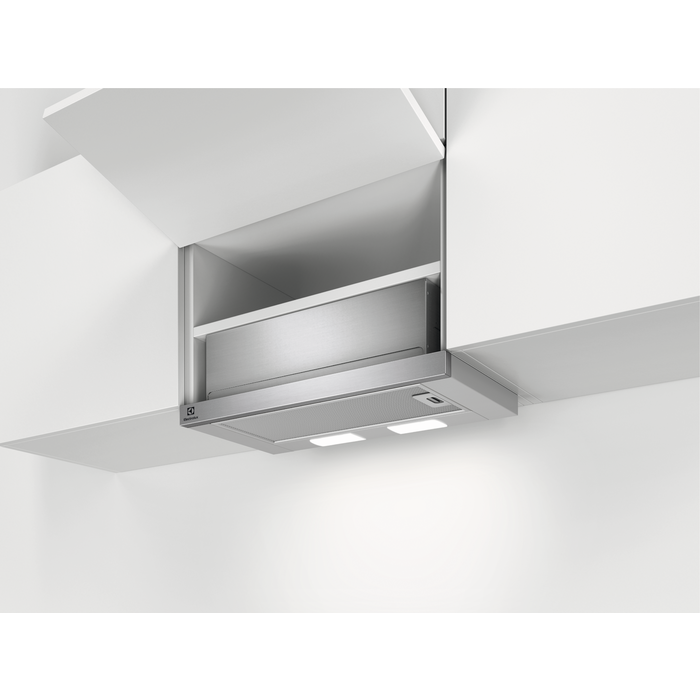

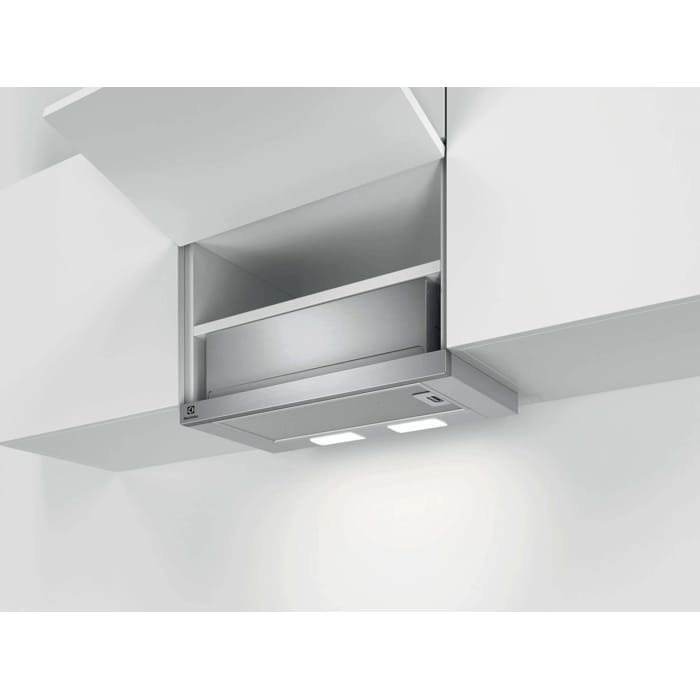

Installation Type: For installation into a furniture unit with shallow front cupboard

Performance

Number of Speed Settings: 3; Micro switch
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 170/410/-
Ducted Noise Level - Min/Max/Intensive (dB): 48/69/-
Light temperature, K: 3000
Number of Lights: 2
Hob2Hood Connection: No
Min Recirculated Extraction Rate (m³/h): 130
Max Recirculated Extraction Rate (m³/h): 225
Intensive Recirculated Extraction Rate (m³/h): 0
Min Recirculated Noise Level (dB): 62
Max Recirculated Noise Level (dB): 72
Number of Grease Filters: 2
Grease Filter Type: Aluminium mesh

Installation

Minimum Distance from Electric Hob (cm): 42
Minimum Distance from Gas Hob (cm): 65
Size (cm): 60
Extraction Type - Recirculation: Yes
Extraction Type - Ducted (External): Yes
Net Weight: 6.7
Gross Weight (Kg): 7.7
Dimensions (mm) (HxWxD): 179x598x309
Installation: Pull-out
Cord Length (m): 1.3
Air Outlet (mm): 150
Voltage (V): 220-240
Required Fuse (A): No

Energy

Energy Rating: C
Grease Filter Efficiency Rating: D
Annual Energy Consumption (kWh): 56.6
Fluid Dynamic Efficiency Rating: D
Lighting Efficiency Rating: E

Other

Product number (PNC): 942 022 689
Main Colour: Grey
Control Type: Mechanical push buttons
Lamp Type: LED bulb
Bar Code: 7332543832293
Charcoal Filter: Included
Charcoal Filter Type: ECFB03ST
Long Life Filter Type: No
Super Performing Filter Type: NO
Information for professionals about non-destructive disassembly according to Regulation EU 66/2014

Product details

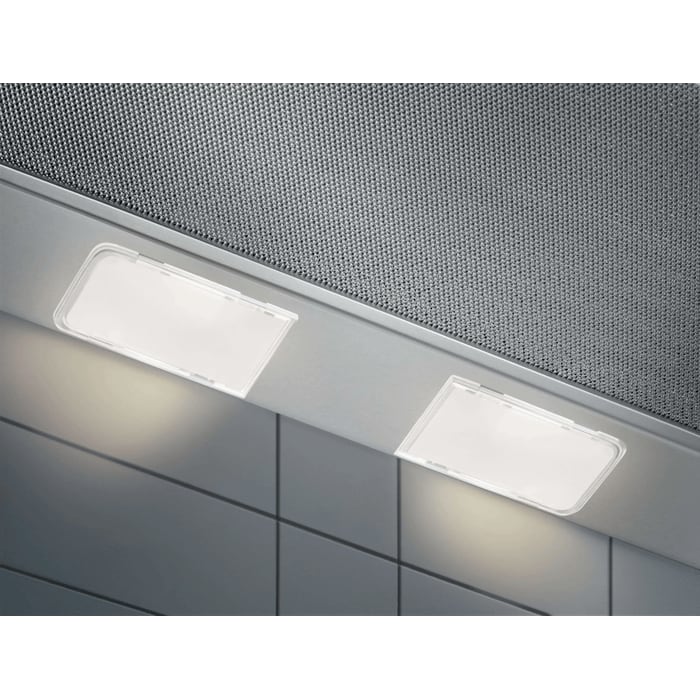

Our 300 LEDlights Hood requires far less energy than other lights and has a much longer life expectancy. Efficient and helpful, these lights ensure exceptional visibility for all your demands while cooking.

Long life and great lighting – let LEDlights lead the way

Enjoy expert illumination while you cook. Our LEDlights use far less energy than other lights and provide excellent visibility in the kitchen, ensuring you cook with greater confidence and agility.

Reliably reduces cooking fumes

Create a cleaner atmosphere for you to cook, eat and relax in with this efficient cooker hood. Its reliable motor effectively reduces cooking fumes so you can enjoy your time in the kitchen more than ever.

Standard grease filter for a clean kitchen

Our reliable grease filter means you can always enjoy a clear cooking space. When a new filter is required, it can be easily washed or replaced. Your kitchen will be cleaner for longer.

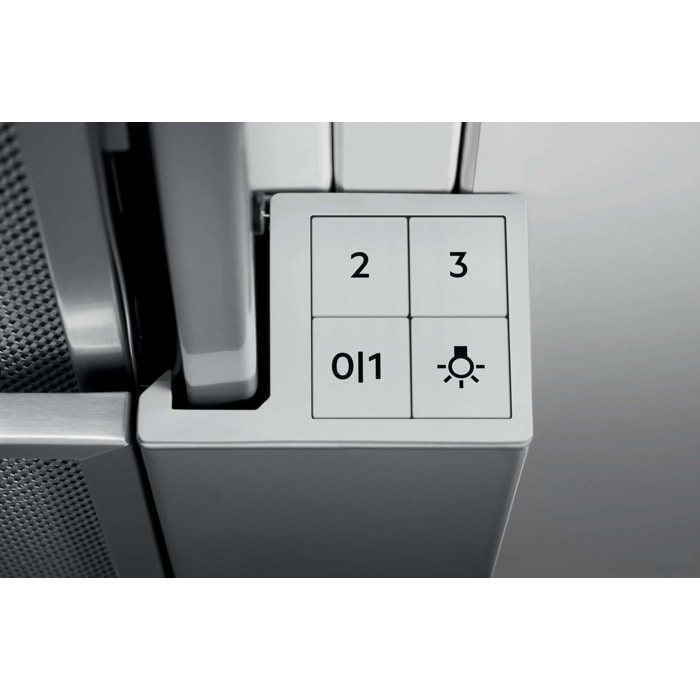

Hood control at the push of a button

Enjoy total hood-control at the push of a button. Simply press to increase or decrease the hood’s power, so you can experience a clear cooking environment.

Fast and easy Best-In-Class Installation

PerfectFit solutions provides user-friendly replacement of your current cooker hood. And 25% fewer mounting steps with tool-free options, for fast, accurate, and Best-In-Class Installation of your new cooker hood.
